CES Series
LED Flexible Screen

Name: RCM Series
Brand: Shenzhen Raymai Industrial Group Co., Ltd.

Raymai's LED flexible screen has no noise, low power consumption, low EMI, long life, and supports point-by-point brightness and chromaticity correction.

Features of CES Series LED Flexible Screen

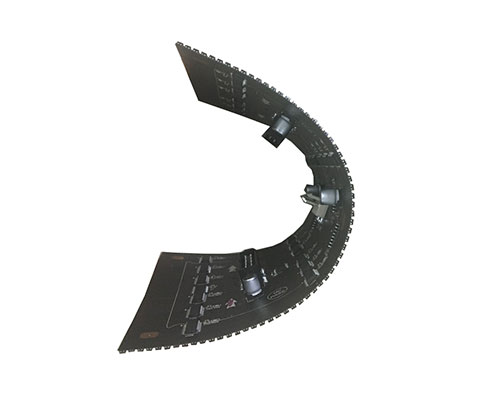

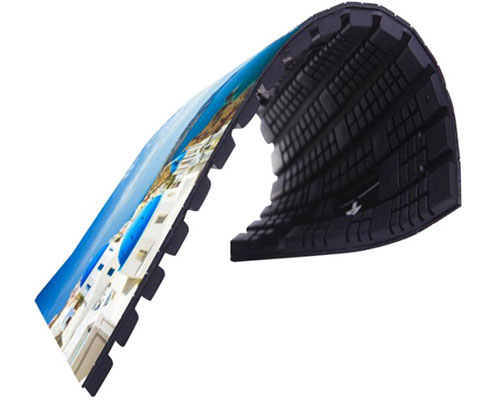

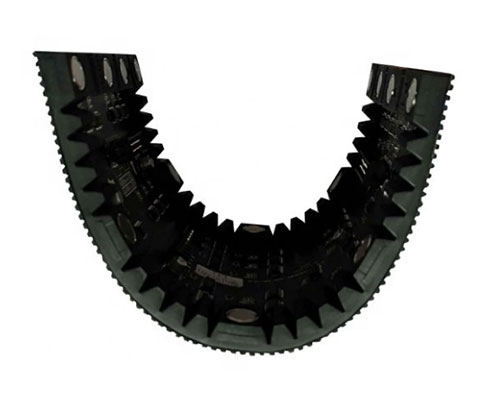

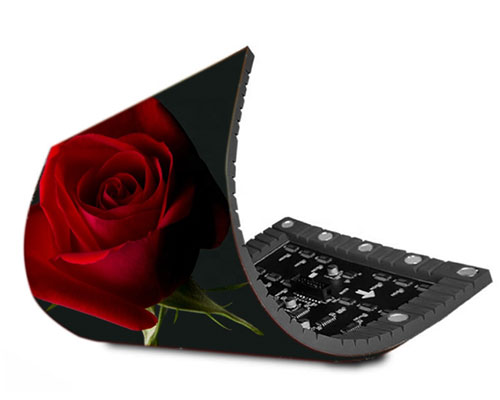

Flexible and changeable, can be bent arbitrarily to create a variety of shapes
HD display, high refresh rate, 4K display, no smear
Quick installation, strong magnetic adsorption process, easy maintenance.

CES Series LED Flexible Screen Specifications

Model	FLEX1.25	FLEX1.579	FLEX1.667	FLEX1.875	FLEX2	FLEX2.5	FLEX3	FLEX4
Pixel Pitch(mm)	1.25	1.579	1.667	1.875	2	2.5	3	4
Pixel Matrix Per Sq.m	640000	401111	360000	284444	250000	160000	111111	62500
Pixel Configuration	SMD1010	SMD1010 / SMD1212	SMD1010 / SMD1212	SMD1212 / SMD1515	SMD1515	SMD1515	SMD1515 / SMD2121	SMD2121
Brightness (nits)	≥600	≥650	≥700	≥750	≥750	≥750	≥900	≥850
Scan	1/48	1/38	1/36	1/32	1/30	1/24	1/20	1/15
Module Weight	0.215kg	0.203kg	0.195kg	0.216kg	0.205kg	0.175kg	0.175kg	0.17kg
Power Con. (Max / Avg)	1000 / 340 w/sq.m	1000 / 340 w/sq.m	800 / 270 w/sq.m	800 / 270 w/sq.m	800 / 270 w/sq.m	800 / 270 w/sq.m	800 / 270 w/sq.m	800 / 270 w/sq.m
Refresh Rate (HZ)	3840	3840	3840	≥2880	≥2880	≥1920	≥1920	≥1920
Module Dimension	240x120mm / 0.79x0.39ft
Module Material	Silicon Rubber Soft Bracket
Service Access	Front
Grey Scale (bit)	14
Viewing Angle (H/V)	140 / 140
IP Rate	IP45
Operation Temperature	-10° ~ 50°
Input Voltage (AC)	100V or 240V
