Raymai LED rental screen has won the favor of global customers with its excellent performance and high-quality products. Meeting rooms, performance halls, disco bars, night clubs, high-end entertainment disco rooms, TV stations, important government cultural events and other places.
Strong stability, using high-quality components and fine processing technology, effectively reducing the dead lamp rate. The dual backup system of power and signal ensures long-term stable operation and supports 7*24 hours of uninterrupted work.
Low brightness and high gray, when the brightness is reduced to 20%, it can still show perfect grayscale performance, and the display consistency is very good. The grayscale performance of the display screen is almost perfect at low brightness, and the layered and vividness of the displayed picture is higher than that of the traditional display screen.
High refresh rate, no streaks in the images captured by the HD camera.

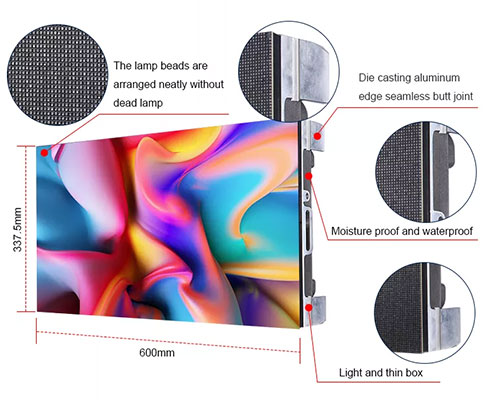

Good consistency, high-strength structure fine-tuning technology, to achieve seamless splicing of the whole screen. By fine-tuning, eliminate bright and dark lines. Point-by-point correction technology, the entire screen brightness, chromaticity consistency and uniformity.
Ultra-wide viewing angle, the viewing angle of the LED screen reaches 160°, and the picture is uniform, clear and natural at all angles.
Low reflectivity, using black fog light and corrugated light-absorbing mask, the reflection is small in bright light environment, and the picture is still clearly visible.
High contrast, using high-quality black light and corrugated light-absorbing sub-black mask, the image is clear and sharp, and the color is bright and colorful.
No | Item | Parameter |
1 | Standard Caninet Size | 960mm*960mm*86mm |
2 | Cabinet Weight | 15.5KGS |
3 | Brightness/Adjustment | ≥6000cd/m², Level 16- Automatic / Level 100-Manual operation |
4 | View Angle | ≥120°(Vertical),≥120°(Horizontal) |
5 | Best View Distance | 5-15m |
6 | Grey Scale | Within 65536 Step |
7 | Frame Frequency | ≥60Hz |
8 | Refresh Rate | ≥720Hz |
9 | Signal Input Source | Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI |
10 | Scan Mode | 1/8Scan |
11 | Drive IC | 5020 |
12 | Module Qty / sqm | 39 |
13 | Display Color Qty | 16777216 |
14 | Continuous Working Time | >24(Hrs) |
15 | Screen Lifespan | >100,000(Hrs) |
16 | MTBF | >5000(Hrs) |
17 | Max. power consumption | 850W/sqm |
18 | Ave. power consumption | 280W/sqm |
19 | Out of control pixel rate | ≥3/10,000(discrete distribution) |
20 | Control Distance | 100M(Ethernet) 500M(Multi-fiber) 10KM(Sigle-fiber) |
21 | Flatness | Screen Surface≤0.5mm,Pixel Pitch≤0.3mm |
22 | Operation Temperature | -10℃~+50℃ |
23 | Working Humidity | 10%~98%RH |
24 | Storage Temperature | -40℃~+85℃ |
25 | Software Connection | Standard Computer Connection,Compatiable With Windows,Unix,Novell |
26 | protection system | Overtemperature/overload/power/image compensation/nonlinear correction |
27 | Working Valtage | 200~240 V |
28 | Dielectric Strength | 50HZ/1500V(AC RMS)/1min |
