Raymai REM conformal LED screen adopts hollow design, does not affect ventilation and lighting, soft and flexible, changeable in shape, not limited by application scenarios, ultra-clear and bright, waterproof and moisture-proof, high flame retardant, corrosion, installation without steel structure, will not damage the building It is an ideal choice for super-large LED screens to create landmarks.

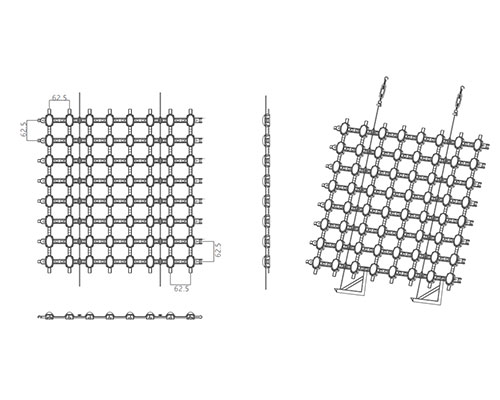

New structure design

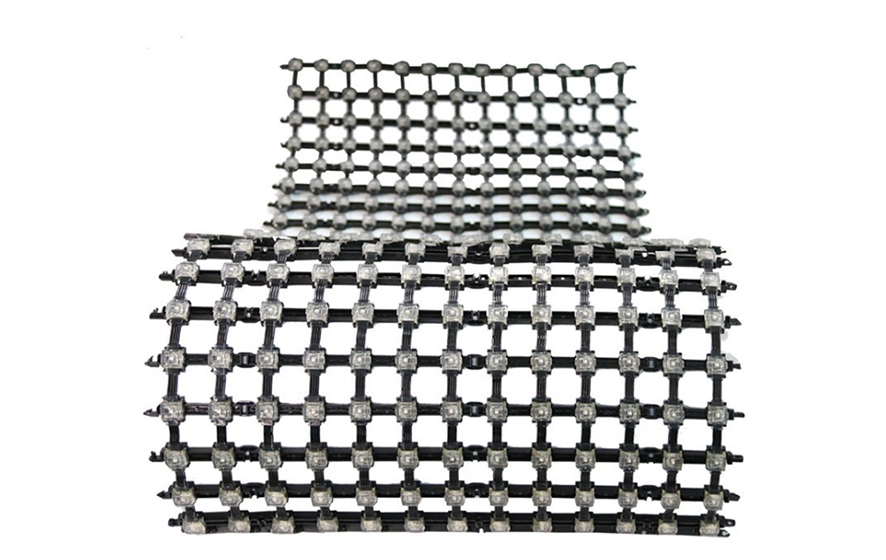

Soft and flexible: the shape is changeable and can be changed according to different application scenarios
Hollow-out design: does not affect ventilation, light transmission
Ultra-thin and ultra-clear: the weight is only 12kg/㎡, making it easier to install and disassemble
Waterproof and moisture-proof, corrosion-resistant
High flame retardant, high temperature resistance,
The installation is simple, without any steel structure, and will not cause any damage to the building surface and curtain wall
Name | Data | Data | Data | Data | |
Product model | / | P55-WGP | P55-WGP | P55-WGP | P27-WGP |
Pixel | SMD | SMD5050*1dot | SMD3535*2dot | SMD 3535*3dot | SMD 3535*1dot |
Pixel number | dot/Square meter | 350 dot | 350 dot | 350 dot | 1400 dot |
Transverse spacing | mm | 55mm | 55mm | 55mm | 27.5mm |
Vertical spacing | mm | 55mm | 55mm | 55mm | 27.5mm |
Color level | bit | 8bit (256) | 14 bit (4096) | 14 bit (4096) | 14 bit (4096) |
Screen brightness | cd/Square meter | 1200cd | 3200cd | 4500cd | 6500cd |
Contrast | / | 1:800 | 1:1200 | 1:1500 | 1:2000 |
Horizontal viewing angle | angle | 140° | 130° | 130° | 130° |
Vertical viewing angle | angle | 140° | 130° | 130° | 130° |
Best viewing distance | m | 80-300m | 50-300 m | 50-300 m | 30-300 m |
Maximum power | W/Square meter | 150W | 200W | 250W | 450W |
Average power | W/Square meter | 35W | 45W | 75W | 115W |
Product weight | kg/Square meter | 1.5kg | 2.8kg | 2.9kg | 3.6kg |
Refresh frequency | Hz | 960 HZ | 4096 HZ | 4096 HZ | 4096 HZ |
Power supply voltage | DC V | DC5V | DC 12V | DC 15V | DC 12V |
Service life | H | ≥50000H | ≥80000H | ≥80000H | ≥80000H |
Transmittance | % | 70% | 65% | 65% | 55% |
Waterproof grade | IP | IP66 | IP67 | IP67 | IP67 |
Product material | outdoors | PC | PC | PC | PC |
