LGP Series

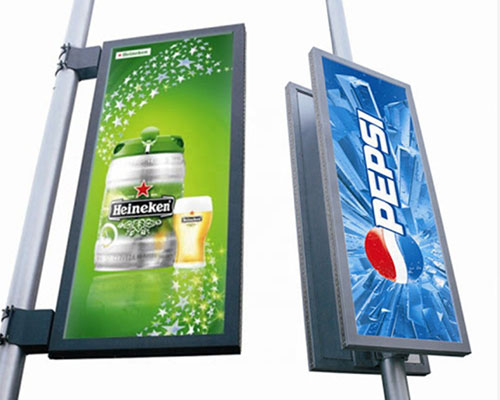

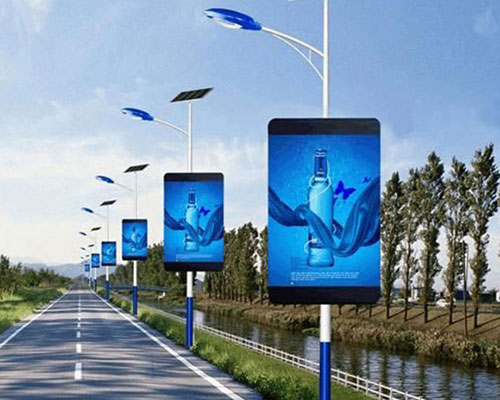

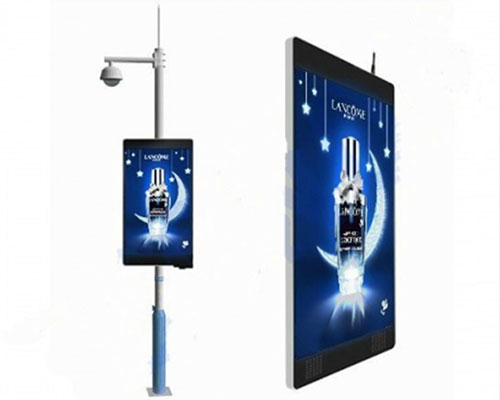

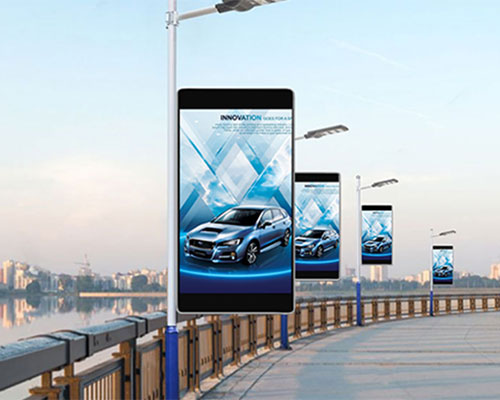

Street Light Pole LED Display
Raymai LGP Series intelligent lamp post screen, to create a smart city, intelligent transportation.
Raymai LGP Series intelligent lamp post screen, to create a smart city, intelligent transportation.
Waterproof and non-slip, innovative mask, wear-resistant, non-slip, anti-scratch
HD display
Compression and shock resistance, can be stepped on with heavy objects of more than 2 tons
seamless stitching
Interactive special effects
Various shapes can be customized
Pixel Pitch(mm) | 4 | 4 | 6 | 8 | 10 |
LED Type | SMD2525 | SMD2525 | SMD3535 | SMD3535 | SMD3535 |
Cabinet Material | Waterproof iron Cabinet | Waterproof iron Cabinet | Waterproof iron Cabinet | Waterproof iron Cabinet | Waterproof iron Cabinet |
Color Depth(Bit) | 16 | 16 | 16 | 16 | 16 |
Gray Scale | 65536 | 65536 | 65536 | 65536 | 65536 |
Driver IC | SUM2017TD | SUM2017TD | SUM2017TD | SUM2017TD | SUM2017TD |
Refresh Rate(Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
Driving Mode | 1/8 | 1/10 | 1/8 | 1/10 | 1/2 |
Brightness(nit) | ≥5800 | ≥5500 | ≥5500 | ≥5500 | ≥7500 |
Viewing Angle (H°/V°) | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° |
Input Voltage(V) | AC100V/AC240V±5% | AC100V/AC240V±5% | AC100V/AC240V±5% | AC100V/AC240V±5% | AC100V/AC240V±5% |
Input Frequency (Hz) | 60 | 60 | 60 | 60 | 60 |
Power Consumption Max.(W/m²) | 950 | 880 | 880 | 880 | 880 |
Power Consumption Ave.(W/m²) | 350 | 290 | 290 | 290 | 290 |
Storage Temperature (℃) | -20 ~ 60 | -20 ~ 60 | -20 ~ 60 | -20 ~ 60 | -20 ~ 60 |
Working Temperature(℃) | -10 ~ 50 | -10 ~ 50 | -10 ~ 50 | -10 ~ 50 | -10 ~ 50 |
Working Humidity (RH) | 10%~98% | 10%~98% | 10%~98% | 10%~98% | 10%~98% |
Protection Level | IP65 | IP65 | IP65 | IP65 | IP65 |
Lifespan(hrs) | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 |
Blind spot Rate | 1＜10000 | 1＜10000 | 1＜10000 | 1＜10000 | 1＜10000 |
Installation Type | Hanging / Stacking / Pole installation | Hanging / Stacking / Pole installation | Hanging / Stacking / Pole installation | Hanging / Stacking / Pole installation | Hanging / Stacking / Pole installation |
Maintenance Type | Rear | Rear | Rear | Rear | Rear |
